Structure and components of the floor stand
The modular floor stand offers a choice of different castors, base plates of different weights and a rigid or telescopic column.
Ultralight floor stand
Ultralight construction, weight: 5.9kg
For extremely weight-optimised transport
Base plate: 420mm x 450mm
Additional mass >10kg required for use
Light floor stand
Lightweight construction, weight: 9.6kg
For weight-optimised transport
Base plate: 420mm x 450mm
Additional mass >10kg required for use
Heavy floor stand
Heavy, stable construction, weight: 20.5kg
Ideal as a permanent mobile standalone device
Base plate: 420mm x 450mm

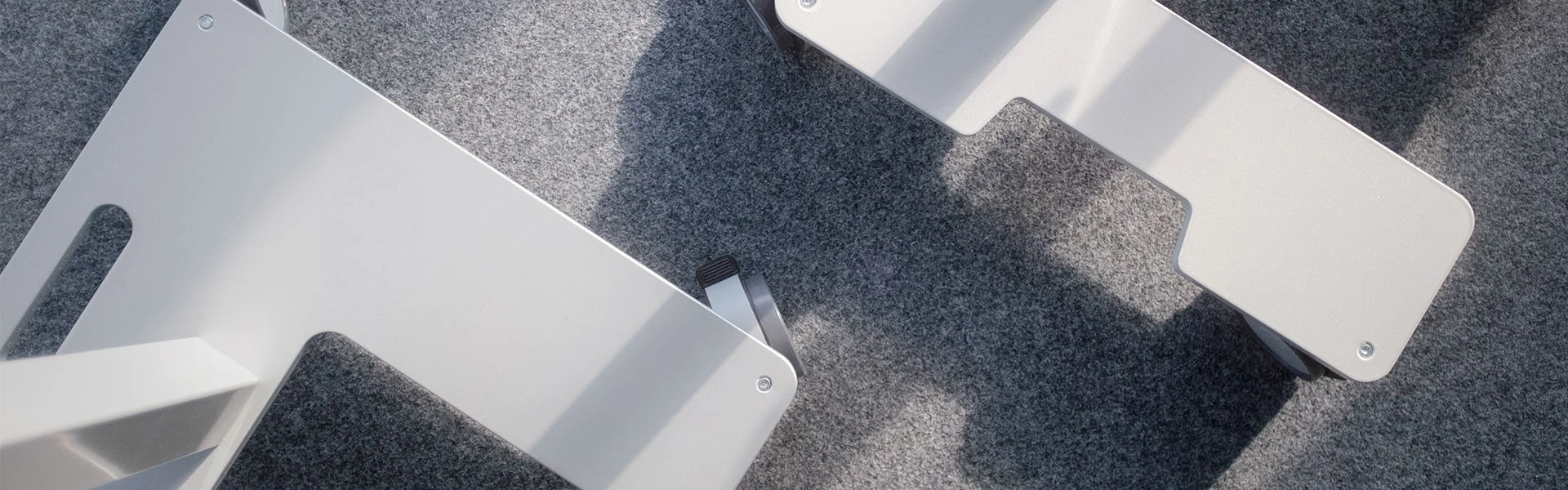

Base plate
The base plate is available in different weight versions to specifically match the stand to its requirements.

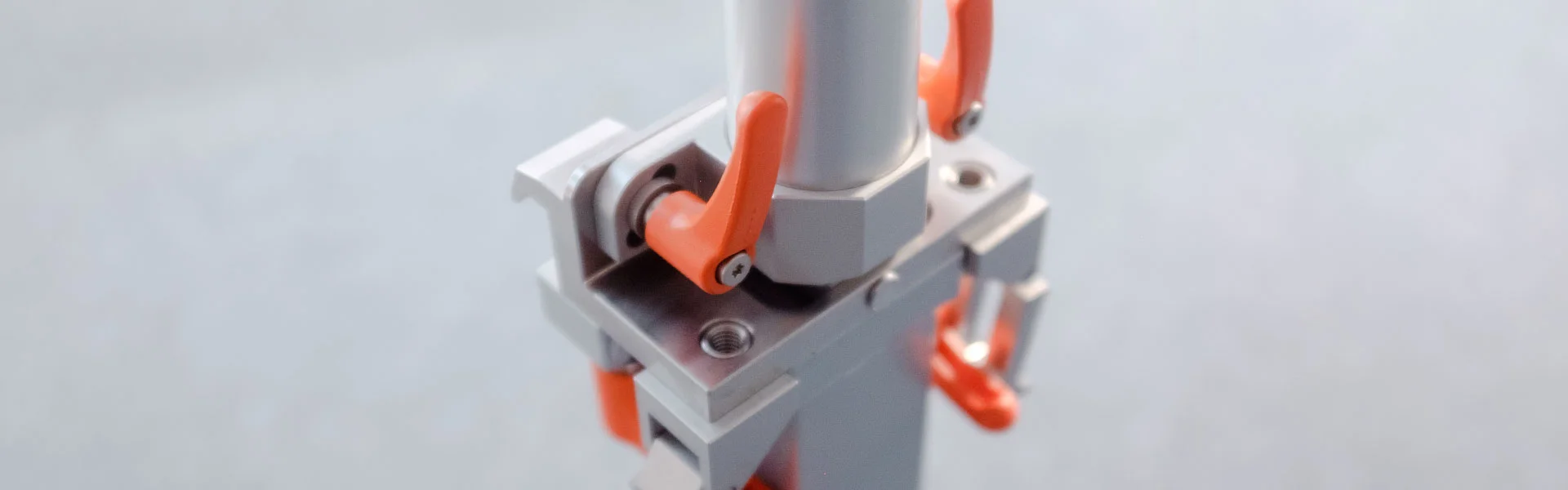

Column
For the column, a rigid column and a stepwise adjustable telescopic column are available. The telescopic column has an additional weight of 1kg compared to the rigid column.
Rigid column: mounting surface 735mm above the ground.
Telescopic column: mounting surface 635-935mm above the ground.
Castors
The four lockable castors are available in stainless steel (Ø100 and Ø75) or plastic (Ø75).
